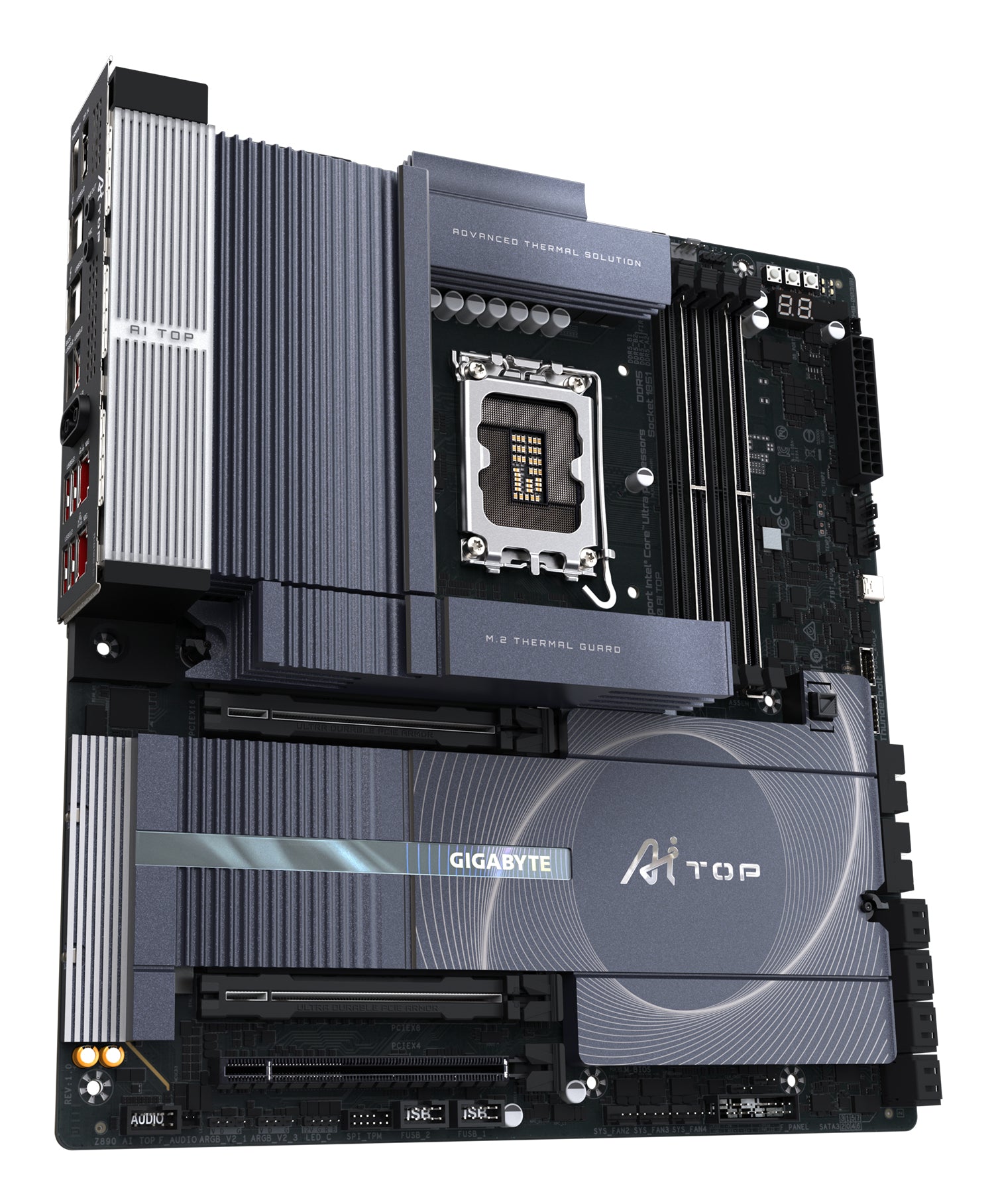

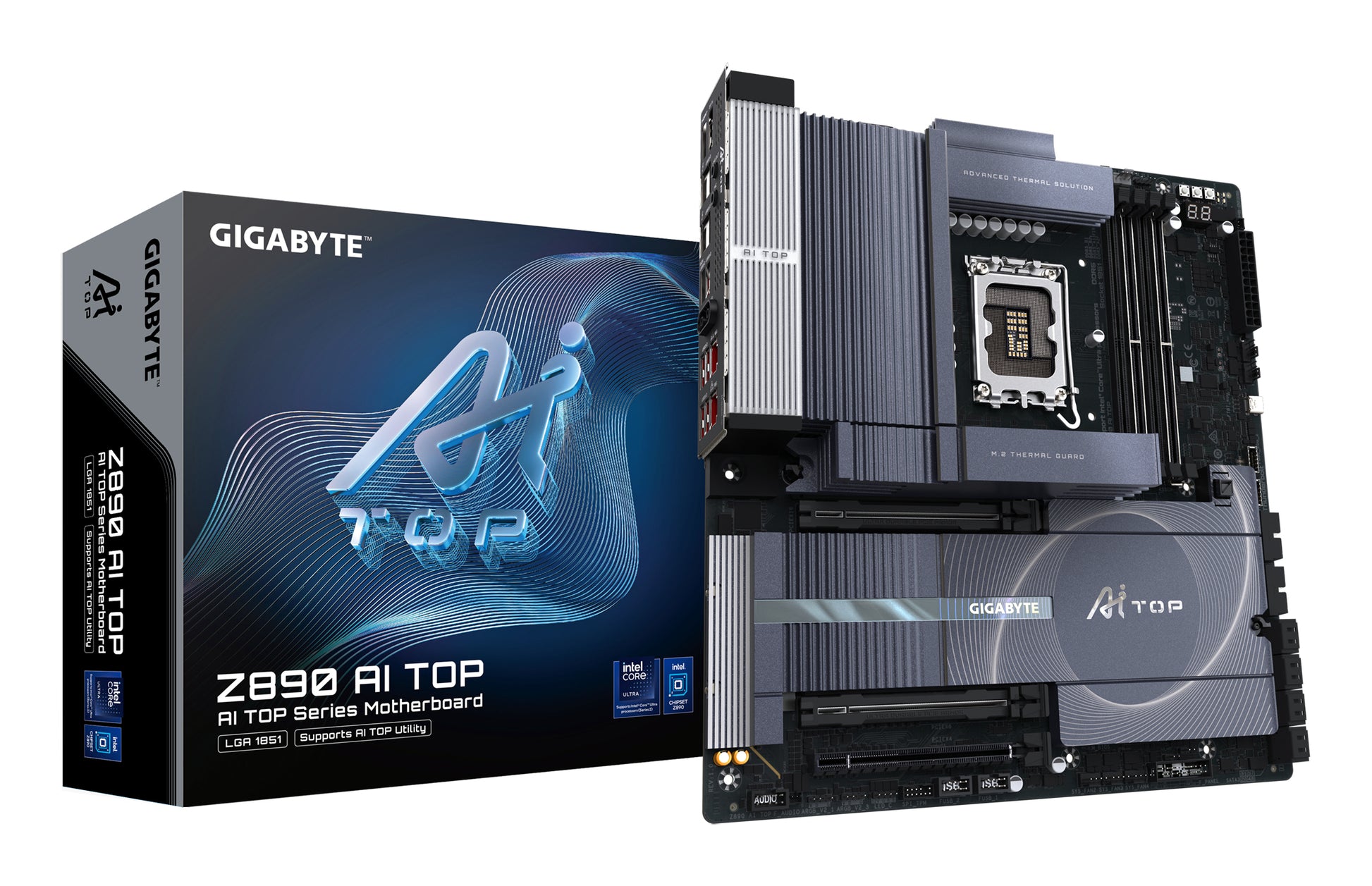

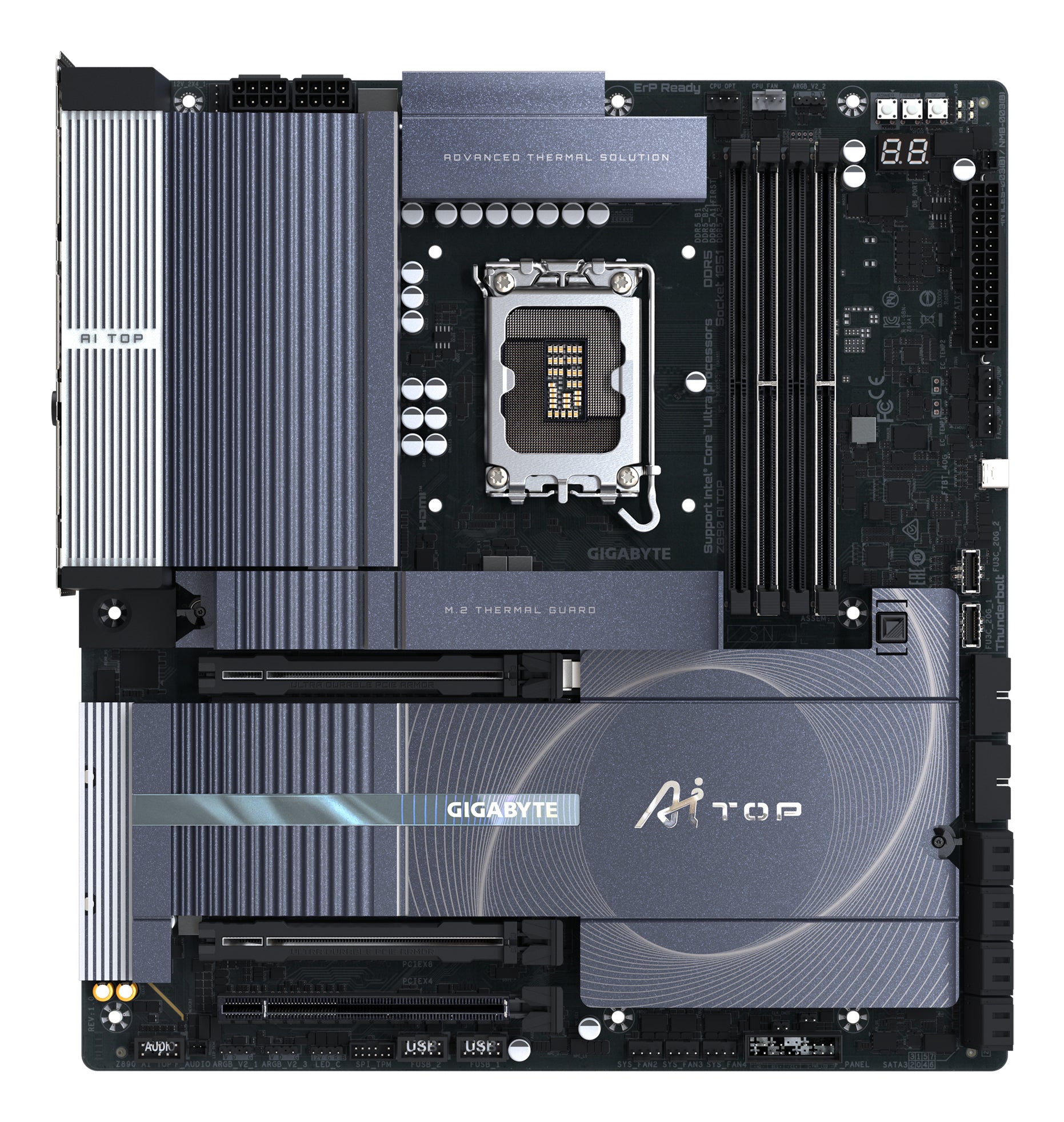

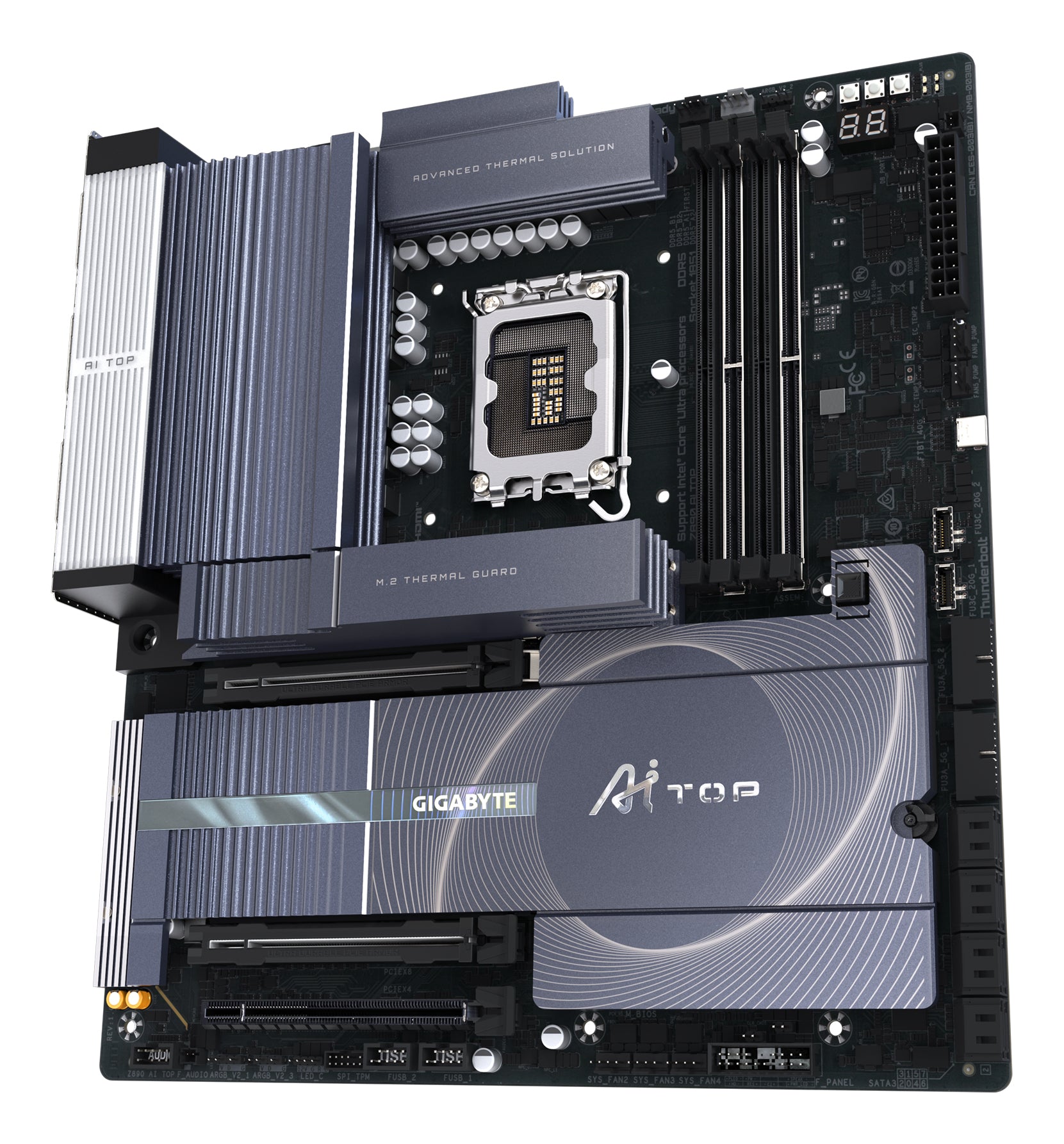

GIGABYTE Z890 AI TOP motherboard Intel Z890 LGA 1851 (Socket V1) Extended ATX
GIGABYTE Z890 AI TOP motherboard Intel Z890 LGA 1851 (Socket V1) Extended ATX
SKU: Z890 AI TOP
Regular price
$549.99 USD
Regular price
Sale price
$549.99 USD
MSRP: $549.99
GIGABYTE Z890 AI TOP. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Quantity
Couldn't load pickup availability
- Details: GIGABYTE Z890 AI TOP. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Info: Training your own AI on your desk|Supports Intel Core Ultra processors (Series 2)|Twin Digital 16+1+2 phases VRM solution|Ultimate Scalability: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots|Next-gen Connectivity: Dual Thunderbolt 5 Type-C with DP-Alt, HDMI|Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna|D5 Bionic Corsa for Infinite Memory Performance|AORUS AI BOOST: Auto-Overclocking Software by AI models|Premium Compatibility: 4*DDR5 with XMP Memory Module Support|Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- System Management BIOS (SMBIOS) version: 2.7
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Number of battery cells: 1
- Lithium weight per battery: 0.00247 oz (0.0700 g)
- Component for: PC
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 2
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 25110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- 4th M.2 largest key size: 22110
- 4th M.2 highest PCI Express generation: 4.0
- Product color: Black
- Motherboard form factor: Extended ATX
- Motherboard chipset family: Intel
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Audio chip: ESS ES9260
- Parallel processing technology support: Not supported
- USB 2.0 connectors: 2
- ATX Power connector (24-pin): Yes
- Number of chassis fan connectors: 6
- TPM connector: Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- Front panel audio connector: Yes
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 3.2 Gen 2x2 connectors: 2
- Number of CPU fan connectors: 2
- Number of water pump connectors: 3
- Number of RGB LED pin headers: 4
- Number of EPS power connectors (8-pin): 2
- Number of temperature sensor headers: 2
- Number of noise detection headers: 1
- Country of origin: Taiwan
- Warranty period: 3 year(s)
- Quantity per shipping (inner) case: 1 pc(s)
- Maximum internal memory: 256 GB
- Memory channels: Dual-channel
- Supported memory types: DDR5-SDRAM
- ECC ?ompatibility: Non-ECC
- Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz
- Memory slots type: DIMM
- Number of memory slots: 4
- Unbuffered memory: Yes
- Supported memory clock speed (max): 9500 MHz
- Maximum internal memory per slot: 64 GB
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Intel Wi-Fi 7 BE200
- Bluetooth: Yes
- Bluetooth version: 5.4
- LAN controller: Marvell AQtion AQC113C
- ACPI version: 5.0
- Bundled software: Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Audio output channels: 2.0 channels
- Batteries included: Yes
- Antenna included: Yes
- Package width: 15.7" (400 mm)
- Package height: 16.9" (430 mm)
- Package depth: 13.2" (335 mm)
- Package weight: 9.04 lbs (4.1 kg)
- Screws included: Yes
- Maximum resolution: 7680 x 4320 pixels
- Motherboard chipset: Intel Z890
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: LGA 1851
- DirectX version: 12.0

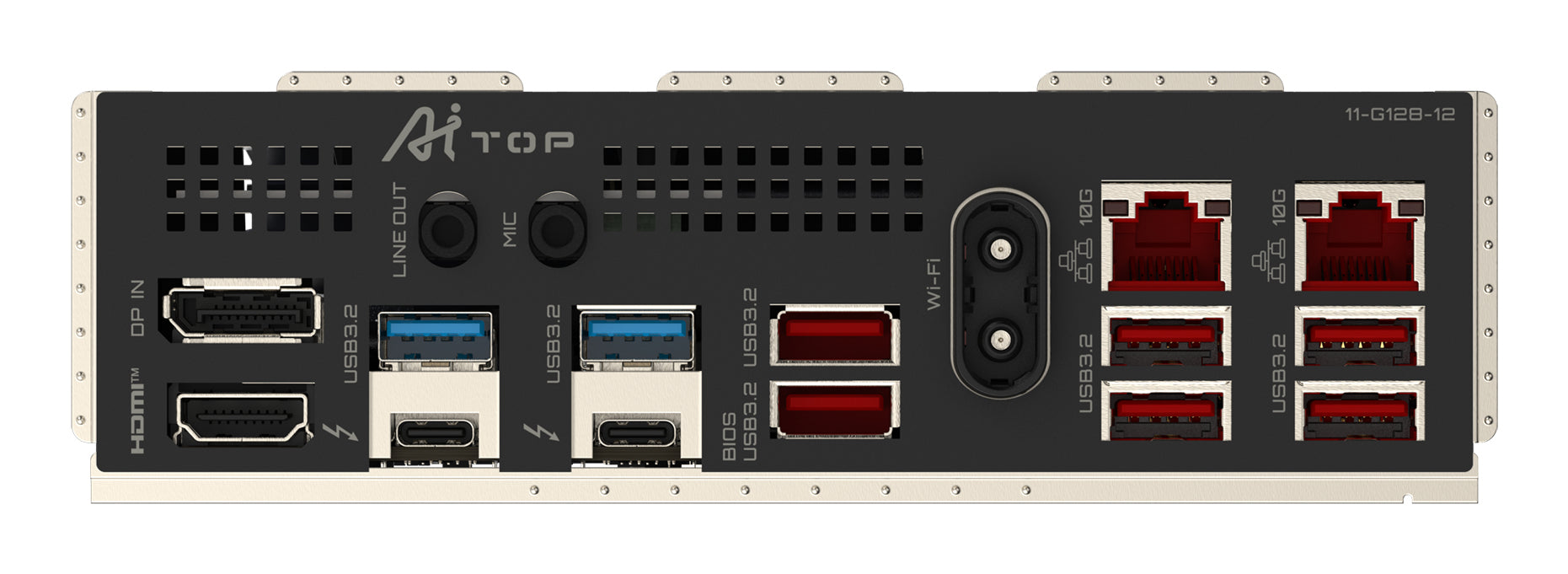

- Ethernet LAN (RJ-45) ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
- Headphone outputs: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- HDCP: Yes
- DisplayPort version: 2.1
- Number of SATA III connectors: 8
- Thunderbolt ports quantity: 2
- Power source type: ATX
- Battery type: CR2032
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- WiFi-AP antenna jack: 2
- Number of storage drives supported: 12
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- Number of HDDs supported: 8
- Windows operating systems supported: Windows 11 x64
- Weight: 7.78 lbs (3.53 kg)
- Width: 12" (305 mm)
- Height: 1.38" (35 mm)
- Depth: 11.2" (285 mm)
- Battery weight: 0.106 oz (3 g)
