• Lenovo RAID 940-16I RAID controller PCI Express x4 4.0 12 Gbit/s
1 1

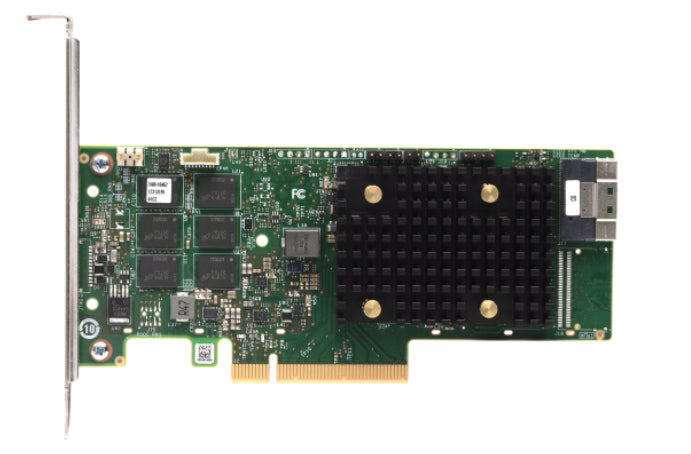

Lenovo RAID 940-16I RAID controller PCI Express x4 4.0 12 Gbit/s

Lenovo RAID 940-16I RAID controller PCI Express x4 4.0 12 Gbit/s

4Y37A78600

$2,719.90 USD
$2,719.90 USD
Sale Sold out

MSRP: $2,129.00

Lenovo RAID 940-16I. Supported storage drive interfaces: SAS Serial ATA Host interface: PCI Express x4. RAID levels: 0 1 5 10 50 60 Data transfer rate: 12 Gbit/s Form factor: Low-Profile MD2 PCIe AIC
View full details
    • Details: Allied Telesis AT-IE210L-18GP-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
    • Video/mp4: https://youtu.be/vXmS16GAagY
    • Info: Extended operating temp range: 0°C to 65°C|Electromagnetic compatibility and surge immunity suitable for industrial (IT zone) and indoor deployments|PoE sourcing up to 30W (PoE+) per port, with an overall power budget of 247W|PoE is available on all 10/100/1000T ports|Built-in AC power input
    • Certification: UL, cUL, UL60950-1, CAN/CSA-C22.2 No.
    • 60950-1-03, EN60950-1, EN60825-1, AS/NZS
    • 60950.1
    • MAC address table: 16000 entries
    • Jumbo frames support: Yes
    • Switching capacity: 36 Gbit/s
    • Number of queues: 8
    • Forwarding rate: 26.8 Mpps
    • Jumbo frames: 10000
    • Latency (1 Gbps): 7.9 µs
    • Latency (10-100 Mbps): 56 µs
    • Latency (10 Gbps): 3.4 µs
    • Static route: Yes
    • Stackable: Yes
    • LED indicators: Yes
    • Rack mounting: Yes
    • Electromagnetic compatibility: EN55032 class A, FCC class A, VCCI class A, ICES-003 class A, EN55024, EN61000-3-2 (harmonic), EN61000-3-3 (flicker)
    • Product color: Gray
    • Harmonized System (HS) code: 85176990
    • Switch type: Managed
    • Web-based management: Yes
    • System event log: Yes
    • MIB support: Comprehensive SNMP
    • Switch layer: L2
    • Traffic classification: Yes
    • ARP inspection: Yes
    • Configuring Location Settings (CLI): Yes
    • Multicast support: Yes
    • Multicast MAC address table: 512 entries
    • Multicast Listener Discovery (MLD) snooping: MLDv1 and v2
    • Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1v, IEEE 802.2, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    • Port mirroring: Yes
    • Flow control support: Yes
    • Link aggregation: Yes
    • Full duplex: Yes
    • Quality of Service (QoS) support: Yes
    • Security algorithms: 802.1x RADIUS, HTTPS, MD5, PEAP, SSH, SSH-2, SSL/TLS, TTLS
    • 10G support: No
    • Copper ethernet cabling technology: 10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
    • VLAN support: Yes
    • Spanning tree protocol: Yes
    • Virtual LAN features: Policy-based VLAN, VLAN Identifier ( VLAN ID)
    • Number of VLANs: 2048
    • Policy-based routing: Yes
    • Operating temperature (T-T): 0 - 65 °C
    • Storage temperature (T-T): -30 - 70 °C
    • Operating relative humidity (H-H): 5 - 95%
    • Storage relative humidity (H-H): 5 - 95%
    • Operating altitude: 0 - 120000" (0 - 3048 m)
    • Heat dissipation: 169 BTU/h
    • Package width: 16.9" (430 mm)
    • Package height: 5.91" (150 mm)
    • Package depth: 14.2" (360 mm)
    • Package weight: 9.59 lbs (4.35 kg)
    • Internal memory: 512 MB
    • Flash memory: 128 MB
    • Noise level: 33 dB
    • Memory type: DDR3-SDRAM
    • Basic switching RJ-45 Ethernet ports quantity: 16
    • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
    • Gigabit Ethernet (copper) ports quantity: 16
    • Power connector: AC-in jack
    • SFP module slots quantity: 2
    • AC input voltage: 100 - 240 V
    • AC input frequency: 50 - 60 Hz
    • Power consumption (max): 21 W
    • Input current: 4.2 A
    • Power supply included: Yes
    • Power over Ethernet (PoE): Yes
    • Power over Ethernet (PoE) ports quantity: 16
    • Power over Ethernet plus (PoE+) ports quantity: 8
    • Total Power over Ethernet (PoE) budget: 247 W
    • Power over Ethernet (PoE) power per port: 15 W
    • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay
    • MAC address filtering: Yes
    • IGMP snooping: Yes
    • Access Control List (ACL): Yes
    • Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
    • Loop protection: Yes
    • SSH/SSL support: Yes
    • BPDU filtering/protection: Yes
    • Authentication type: IEEE 802.1x, Network Access Control (NAC), RADIUS
    • MAC address entries: Blackhole MAC address entries
    • Weight: 6.61 lbs (3 kg)
    • Width: 13.4" (341 mm)
    • Height: 1.73" (44 mm)
    • Depth: 9.09" (231 mm)
